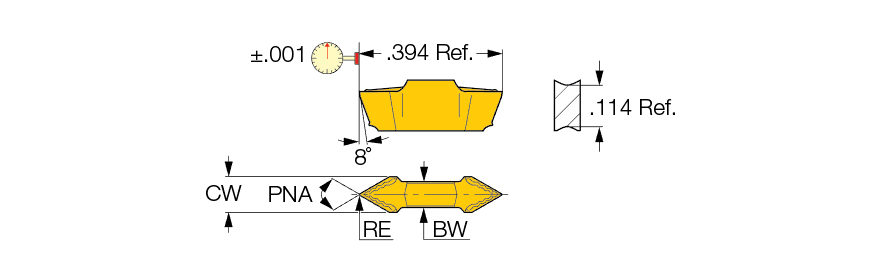

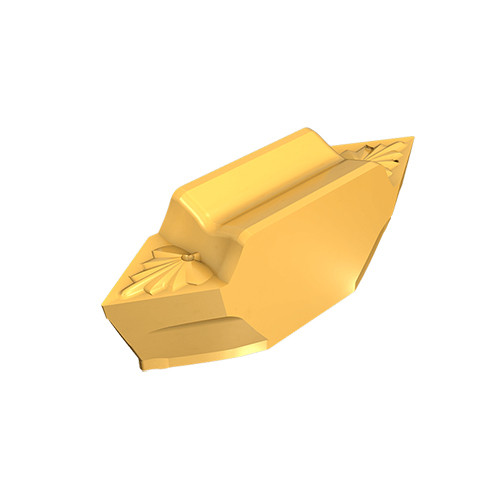

GEPI 2.5-MT0.05 IC908
| Thread Standard | THFT | | Thread Pitch Maximum (TPX) | 2.54 mm |
| Corner Radius (RE) | 0.002″ | Cutting Edge Length (L) | 0.394″ |
| Cutting Width (CW) | 0.098″ | Profile Included Angle (PNA) | 60 Degrees |
| Grade | IC908 | Insert to Shank Reference | 0.9 mm |
| Coating | TiAlN | Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide | Threads per Inch Maximum (TPIX) | 28 |
| Cutting Position | External | Threads per Inch Minimum (TPIN) | 10 |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
| Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP60 |
| Thread Pitch Minimum (TPN) | 0.91 mm |
Product Features
| Family Description | Precision ground internal double-ended threading inserts with a 60° partial profile for general applications. Minimum bore diameter .453″. | Country of Origin | Switzerland |
| Remarks | Toolholder seat needs to be modified according to insert profile to ensure clearance Pitch max 0.187xD, TPI min D/5.35 D=Diameter of thread (pitch max<=CW) DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A |
Shipping Info
Package Length
.39000
Package Width
.12000
Package Height
.09000
Package Weight
0.004
