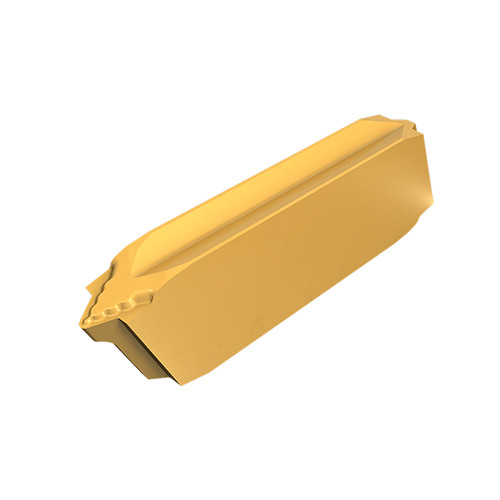

TIP 4P2.0-ISO IC08
| Thread Standard | THFT | | Application | | Threading (Ext.) Groove Turn T | |
| Thread Pitch (TP) | 2 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Corner Radius (RE) | 0.011″ | Cutting Edge Length (L) | 0.602″ |
| Cutting Width (CW) | 0.157″ | Profile Included Angle (PNA) | 60 Degrees |
| Grade | IC08 | Tool Type | Threading Regular Inserts |
| Coating | Uncoated | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | External | Thread Form Type (THFT) | M60 |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | Precision ground ISO metric, full profile, double-ended, external threading inserts with a chipformer for general applications. | Country of Origin | Switzerland |

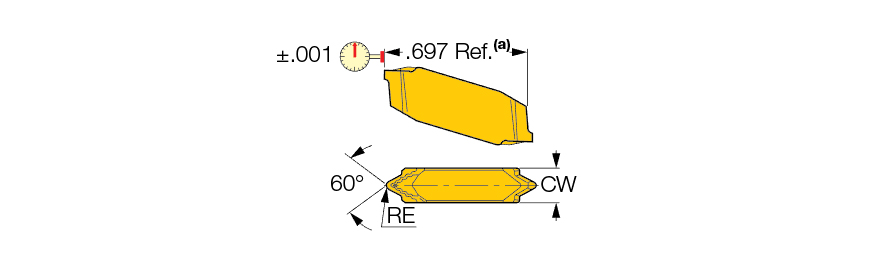

| Remarks | (a) TIP inserts are .063 longer than GIP in the same pocket Toolholder seat needs to be modified according to insert profile to ensure clearance |
Shipping Info
Package Weight
0.012
