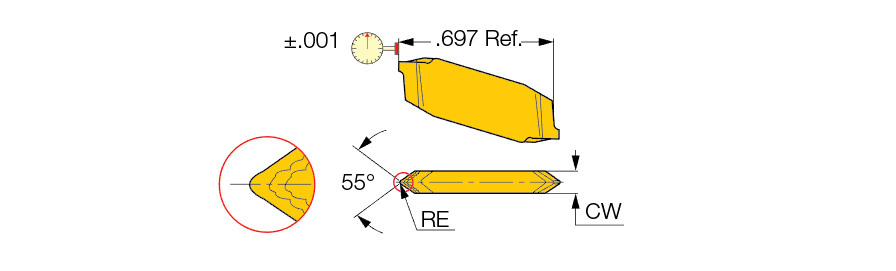

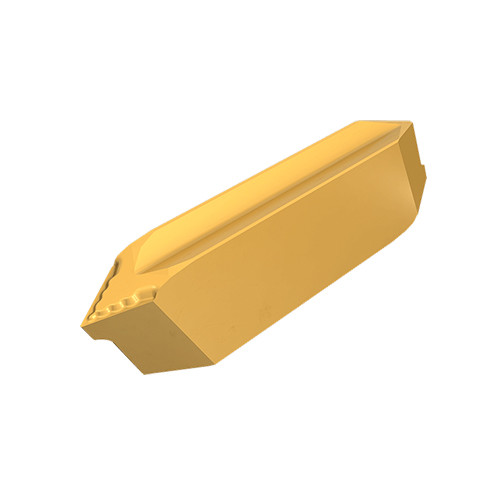

TIP 4WT-0.15 IC908
| Thread Standard | THFT | | Thread Pitch Maximum (TPX) | 3.63 mm |
| Corner Radius (RE) | 0.006″ | Cutting Edge Length (L) | 0.602″ |
| Cutting Width (CW) | 0.157″ | Profile Included Angle (PNA) | 55 Degrees |
| Grade | IC908 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Threads per Inch Maximum (TPIX) | 19 |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 7 |
| Cutting Position | External | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | | Thread Form Type (THFT) | VP55 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Precision ground double-ended threading inserts with a 55° partial profile and a chipformer. | Country of Origin | Israel |
| Remarks | Toolholder seat needs to be modified according to insert profile to ensure clearance. Internal & External tolerance: B.S.84 Medium class |
Shipping Info
Package Weight
0.012
