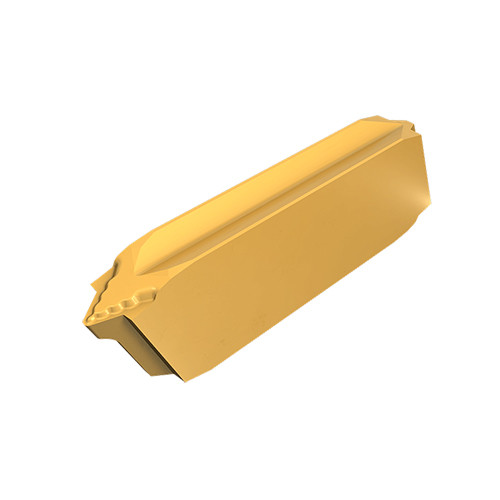

TIP 2P20-UN IC908
| Thread Standard | THFT | | Application | | Threading (Ext.) Groove Turn T | |
| Threads per Inch (TPI) | 20 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

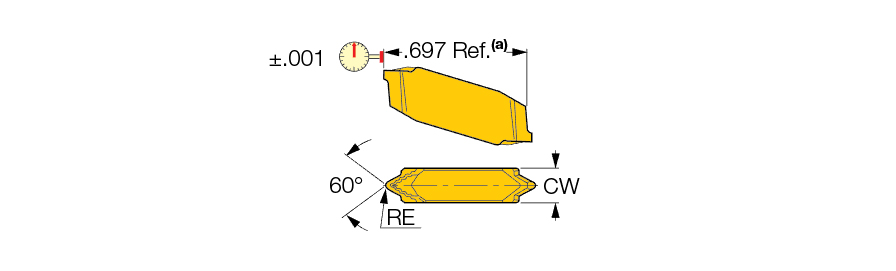

| Corner Radius (RE) | 0.0063″ | Cutting Edge Length (L) | 0.602″ |
| Cutting Width (CW) | 0.094″ | Profile Included Angle (PNA) | 60 Degrees |
| Grade | IC908 | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | External | Thread Form Type (THFT) | UN60 |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | Precision ground, American UN (UNC,UNF,UNEF), full profile, double-ended, external threading inserts with a chipformer. Used for general applications. | Country of Origin | SWITZERLAND |
| Remarks | (a) TIP inserts are .063 longer than GIP in the same pocket Toolholder seat needs to be modified according to insert profile to ensure clearance |
Shipping Info
Package Weight
0.006
