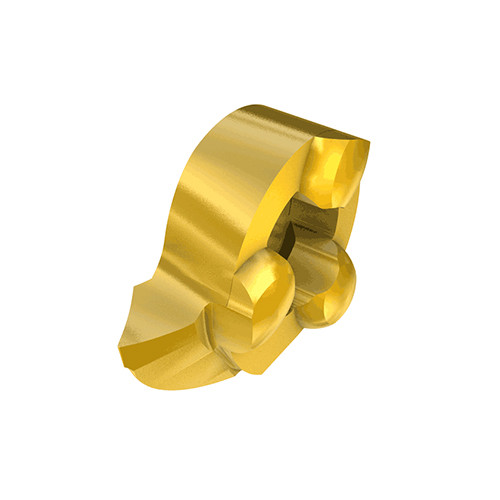

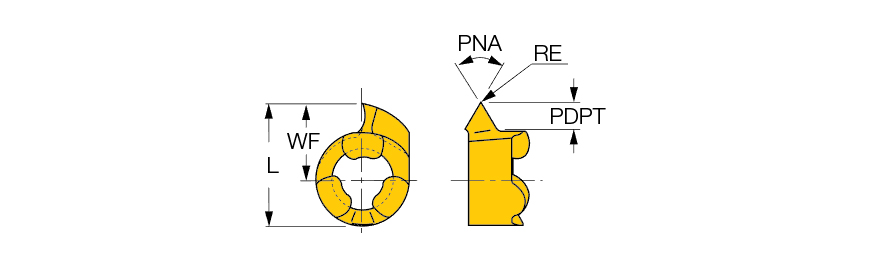

GIQR 11-WT-0.05 IC528
| Thread Standard | THFT | | Cutting Edge Length (L) | 0.42″ |
| Corner Radius (RE) | 0.002″ | Profile Included Angle (PNA) | 55 Degrees |
| Grade | IC528 | Insert to Shank Reference | 0.5 mm |
| Coating | TiCN+TiN | Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide | Threads per Inch Maximum (TPIX) | 50 |
| Cutting Position | Internal | Threads per Inch Minimum (TPIN) | 11 |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Application | | Threading (Int.) | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP55 |
| Minimum Bore Diameter (DMIN) | 0.433″ |
Product Features
| Family Description | Internal inserts with Whitworth partial profile for threading in 8 mm and larger holes. CHAMGROOVE - part of the CHAMELEON multifunction system. | Country of Origin | Israel |
| Remarks | Can be used for thread milling by circular interpolation TPI min D/5.9 D-diameter of thread (pitch max<=W) |
Shipping Info
Package Length
3.87500
Package Width
1.62500
Package Height
.43750
Package Weight
0.006
