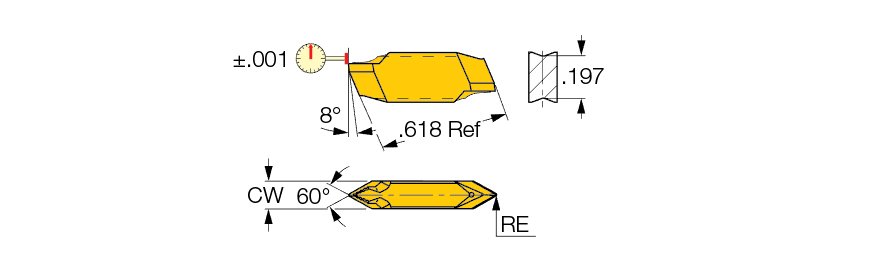

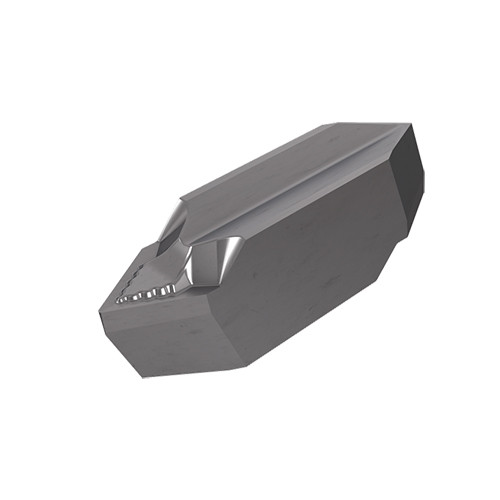

TIPI 3.4MT-0.10 IC08
| Thread Standard | THFT | | Thread Pitch Maximum (TPX) | 3.18 mm |
| Corner Radius (RE) | 0.004″ | Cutting Edge Length (L) | 0.618″ |
| Cutting Width (CW) | 0.134″ | Profile Included Angle (PNA) | 60 Degrees |
| Grade | IC08 | Insert to Shank Reference | 1.8 mm |
| Coating | Uncoated | Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide | Threads per Inch Maximum (TPIX) | 14 |
| Cutting Position | Internal | Threads per Inch Minimum (TPIN) | 8 |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
| Application | | Threading (Int.) | | Body Material | Carbide |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Thread Form Type (THFT) | VP60 |
| Thread Pitch Minimum (TPN) | 1.8 mm |
Product Features
| Family Description | Precision ground double-ended internal threading inserts with 60° partial profile and chipformer for .787″ min. bore dia. | Country of Origin | Israel |
| Remarks | Toolholder seat needs to be modified according to insert profile to ensure clearance. Pitch max 0.205xD, TPI min D/4.8 D=Diameter of thread (pitch max<=CW) TIPI inserts are .063 longer than GIPI in the same pocket DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H ANSI/ASME B1.1 - Internal tolerance: 2B |
Shipping Info
Package Weight
0.011
