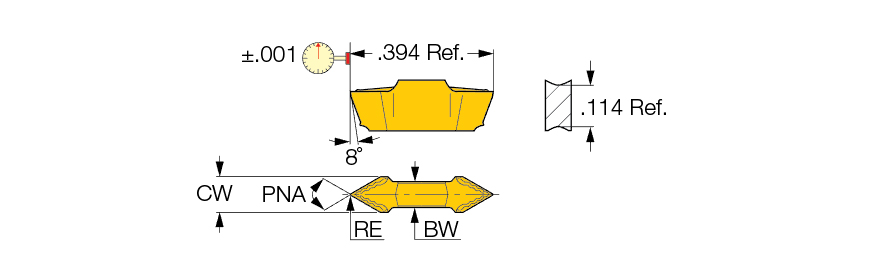

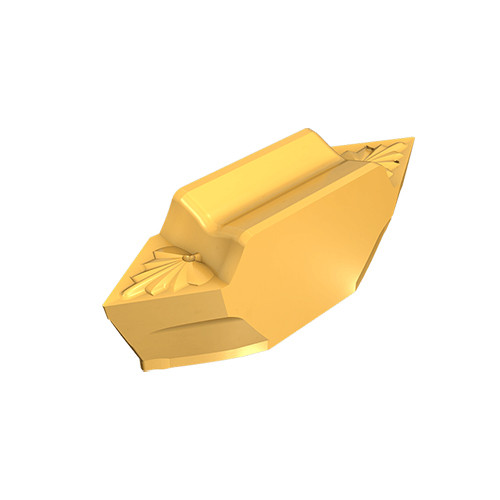

GEPI 2.5-WT0.05 IC908
| Thread Standard | THFT | | Thread Pitch Maximum (TPX) | 2.54 mm |
| Corner Radius (RE) | 0.002″ | Cutting Edge Length (L) | 0.394″ |
| Cutting Width (CW) | 0.098″ | Profile Included Angle (PNA) | 55 Degrees |
| Grade | IC908 | Insert to Shank Reference | 0.47 mm |
| Coating | TiAlN | Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide | Threads per Inch Maximum (TPIX) | 54 |
| Cutting Position | External | Threads per Inch Minimum (TPIN) | 10 |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
| Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP55 |
| Thread Pitch Minimum (TPN) | 0.47 mm |
Product Features
| Family Description | Precision ground double-ended threading inserts with a 55° partial profile and a chipformer for .453″ bore diameter. | Country of Origin | Israel |
| Remarks | Toolholder seat needs to be modified according to insert profile to ensure clearance Pitch max 0.167xD, TPI min D/6.0 Internal & External tolerance: B.S.84 Medium class |
Shipping Info
Package Weight
0.004
