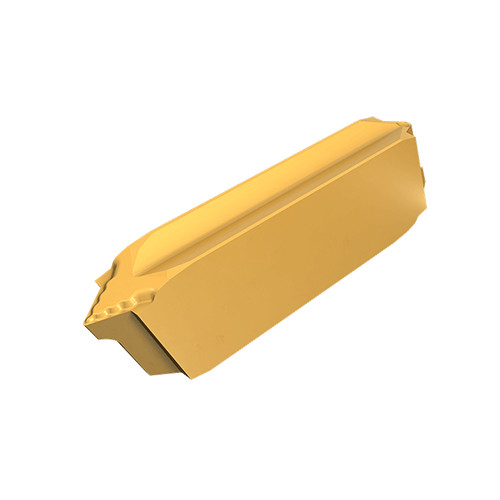

TIP 4P11.5-NPT IC08
| Thread Standard | THFT | | Application | | Threading (Ext.) Groove Turn T | |
| Threads per Inch (TPI) | 11.5 | Applicable Material | | Aluminum / Non-Ferrous Materials | |

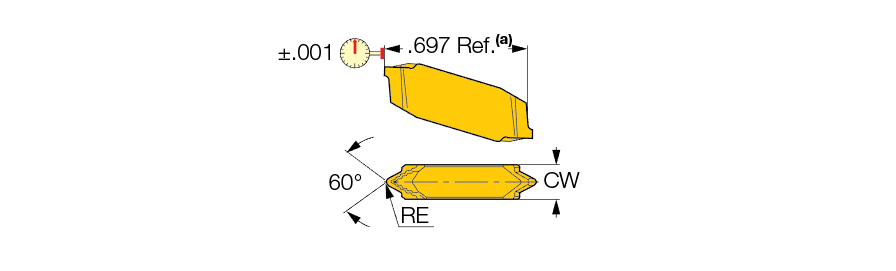

| Corner Radius (RE) | 0.004″ | Cutting Edge Length (L) | 0.602″ |
| Cutting Width (CW) | 0.157″ | Profile Included Angle (PNA) | 60 Degrees |
| Grade | IC08 | Tool Type | Groove-Turn Precision Inserts |
| Coating | Uncoated | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | External | Thread Form Type (THFT) | NPT60 |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | Precision ground, NPT (National Pipe Threads) full profile, double-ended, external threading inserts with a chipformer. Used for steam, gas and water pipes. | Country of Origin | Switzerland |
| Remarks | (a) TIP inserts are .063 longer than GIP in the same pocket Toolholder seat needs to be modified according to insert profile to ensure clearance |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.014
