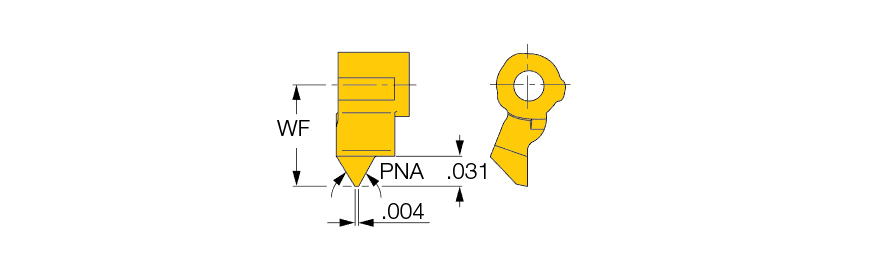

UMGR 4.0-A55 IC508
| Thread Standard | THFT | | Thread Pitch Maximum (TPX) | 1.4 mm |
| Grade | IC508 | Profile Included Angle (PNA) | 55 Degrees |
| Coating | TiCN+TiN | Insert to Shank Reference | 0.5 mm |
| Cutting Edge Material | Carbide | Tool Type | Groove-Turn Precision Inserts |
| Cutting Position | Internal | Threads per Inch Maximum (TPIX) | 40 |
| Cutting Direction (HAND) | Right Hand | Threads per Inch Minimum (TPIN) | 24 |
| Application | | Threading (Int.) | | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.205″ | Thread Form Type (THFT) | VP55 |
| Thread Pitch Minimum (TPN) | 0.5 mm |
Product Features
| Family Description | Mini indexable inserts with Whitworth partial profile for threading in .205″ and larger holes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.018
