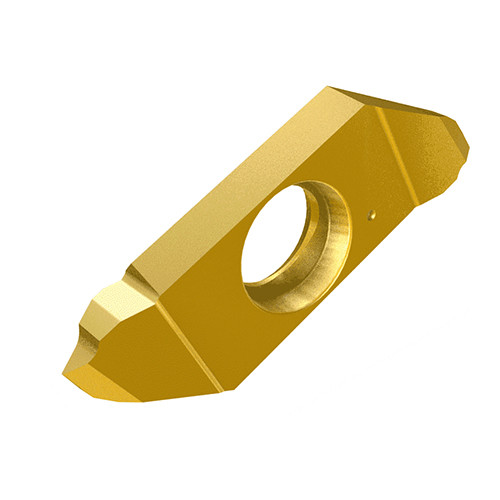

SCIR 22-MTR003 IC07
| Thread Standard | THFT | | Thread Pitch Minimum (TPN) | 0.3 mm |

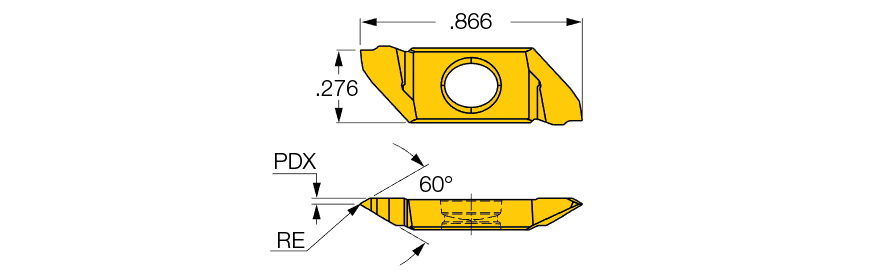

| Corner Radius (RE) | 0.0012″ | Thread Pitch Maximum (TPX) | 0.9 mm |
| Insert Thickness (S) | 0.276″ | Cutting Edge Length (L) | 0.866″ |
| Grade | IC07 | Tool Type | Threading Regular Inserts |
| Coating | Uncoated | Threads per Inch Maximum (TPIX) | 83 |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 28 |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Application | | Threading (Ext.) Groove Turn T | | Body Material | Carbide |
| Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP60 |
Product Features

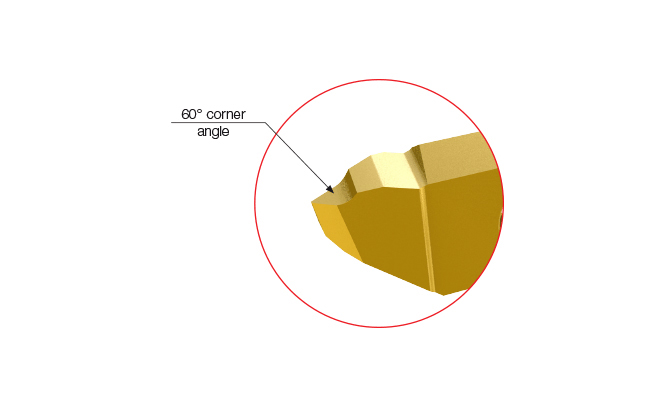

| Family Description | Threading inserts with a 60° partial profile. | Country of Origin | Israel |
| Remarks | DIN13 , ISO 68-1, ISO 965 (1&2) - External tolerance: 6g ANSI/ASME B1.1 - External tolerance: 2A |
Shipping Info
Package Weight
0.014
