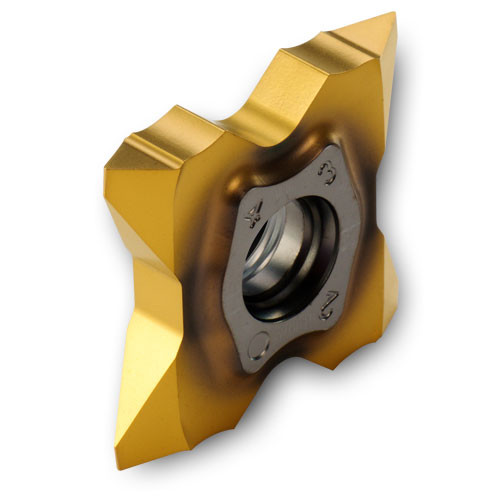

TQS27-5MT-0.15 TT9080
| Threads per Inch (TPI) | 6 | Cutting Depth | 0.12″ |
| Corner Radius (RE) | 0.006″ | Thread Pitch Maximum (TPX) | 4.0 mm |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Edge Length (L) | 0.122″ |
| Grade | TT9080 | Profile Included Angle (PNA) | 60 Degrees |
| Coating | TiAlN+TiN | Threads per Inch Maximum (TPIX) | 20 |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 6 |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
| Application | | Threading (Ext.) Groove Turn T | | Body Material | Steel |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.50000
Package Width
2.00000
Package Height
.40000
Package Weight
0.041
