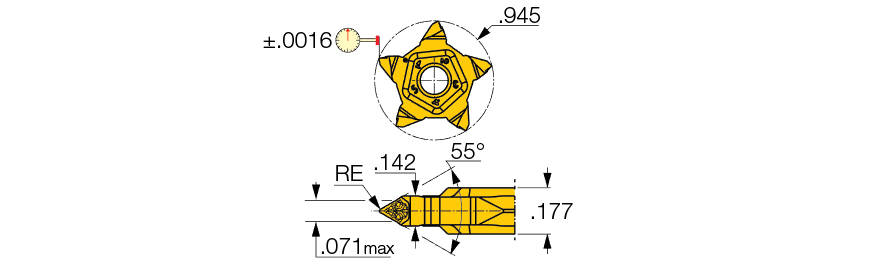

| Thread Standard | THFT | | Profile Included Angle (PNA) | 55 Degrees |
| Corner Radius (RE) | 0.0059″ | Tool Type | Groove-Turn Precision Inserts |
| Grade | IC908 | Threads per Inch Maximum (TPIX) | 24 |
| Coating | TiAlN | Threads per Inch Minimum (TPIN) | 8 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Threading (Ext.) Groove Turn T | Threading Between Walls | | Thread Form Type (THFT) | VP55 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features

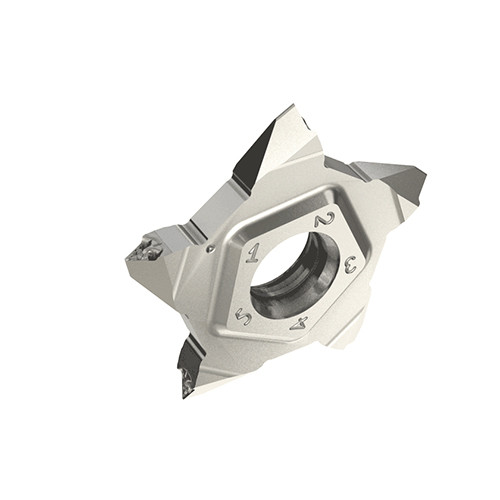

| Family Description | Precision ground pentagonal external threading inserts with a whitworth 55° partial profile. | Country of Origin | Israel |
| Remarks | TPIN=6.4/D(inch) D-nominal thread diameter (inch) |
Shipping Info
Package Weight
0.025
