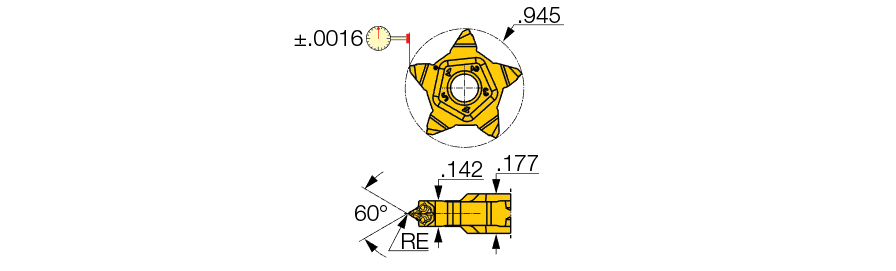

| Thread Standard | THFT | | Application | | Threading (Ext.) Groove Turn T | Threading Between Walls | |
| Threads per Inch (TPI) | 18 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0027″ | Profile Included Angle (PNA) | 60 Degrees |
| Grade | IC908 | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Thread Form Type (THFT) | NPT60 |
Product Features

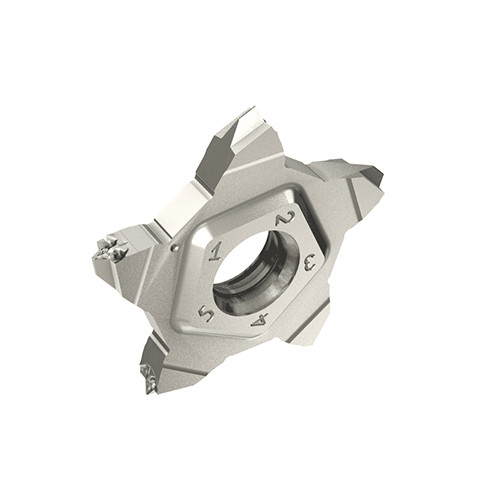

| Family Description | Precision ground NPT (National Pipe Threads), full profile, pentagonal, external threading inserts with a chipformer for general applications. Used for steam, gas and water pipes. | Country of Origin | Israel |
Shipping Info
Package Length
3.87500
Package Width
1.62500
Package Height
.43750
Package Weight
0.026
