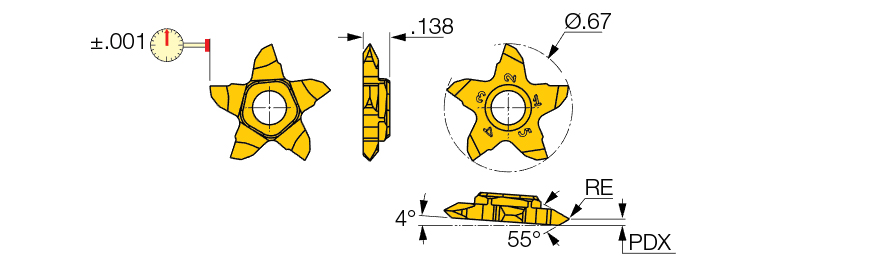

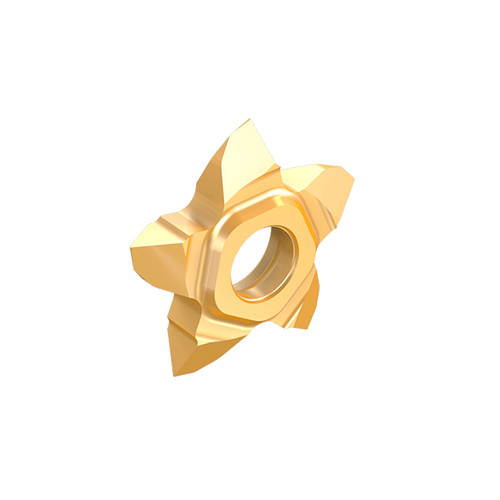

PENTA 17-WTL003LS IC1008
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0012″ | Threads per Inch Maximum (TPIX) | 72 |
| Grade | IC1008 | Threads per Inch Minimum (TPIN) | 16 |
| Coating | TiAlN+TiN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Direction (HAND) | Left Hand | Thread Form Type (THFT) | VP55 |
| Application | | Threading (Ext.) Groove Turn T | Threading Between Walls | |
Product Features
| Family Description | Precision ground pentagonal external threading inserts with a 55° partial profile for general applications | Country of Origin | Israel |
Shipping Info
Package Weight
0.010
