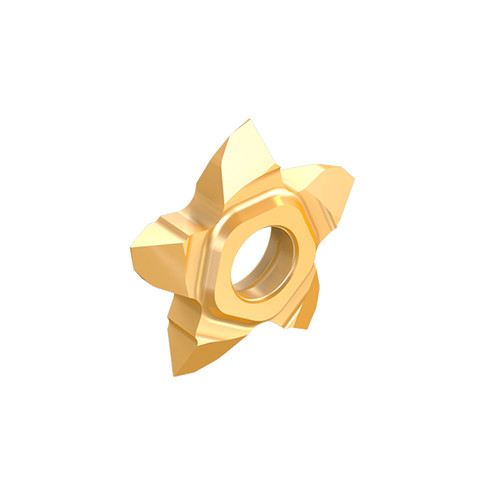

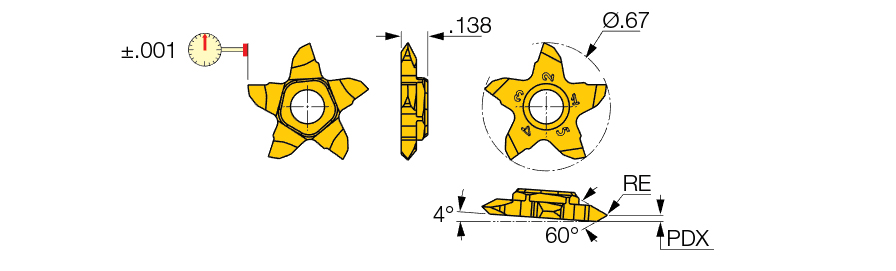

PENTA 17-MTL003LS IC1008
| Thread Standard | THFT | | Thread Pitch Minimum (TPN) | 0.3 mm |
| Corner Radius (RE) | 0.0012″ | Thread Pitch Maximum (TPX) | 1.5 mm |
| Grade | IC1008 | Threads per Inch Maximum (TPIX) | 80 |
| Coating | TiAlN+TiN | Threads per Inch Minimum (TPIN) | 17 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Body Material | Carbide |
| Application | | Threading (Ext.) Groove Turn T | Threading Between Walls | | Thread Form Type (THFT) | VP60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Precision ground pentagonal external threading inserts with a 60° partial profile for general applications | Country of Origin | Israel |
| Remarks | DIN13 , ISO 68-1, ISO 965 (1&2) - External tolerance: 6g ANSI/ASME B1.1 - External tolerance: 2A |
Shipping Info
Package Weight
0.009
