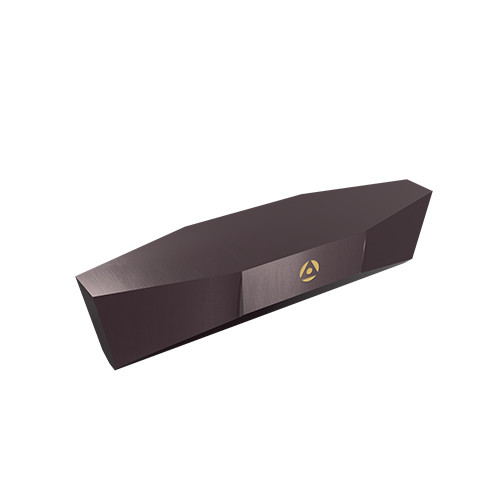

V85 NT 2P AC3A
| Application | | Int Ext Threading Vee Bottom | | Cutting Width (CW) | 0.18″ |
| Coating | TiAlN | Insert Length (INSL) | 1″ |
| Cutting Edge Material | Carbide | Insert Thickness (S) | 0.312″ |
| Measurement Type | Inch | Thread Form Type (THFT) | ACME Am. Nat. 29° Angle B1.8 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Threads per Inch (TPI) | 2 |
| Body Material | Carbide | Threads per Inch Maximum (TPIX) | 0 |
| Grade | AC3A | Threads per Inch Minimum (TPIN) | 0 |
| Angle | 90 Degrees | Insert Width (W1) | 0.312″ |
| Corner Radius (RE) | 0.1802″ | Central Flat (CF) | 0.18″ |
Product Features
| Family Description | Internal and External FloVee V85 Style Threading Inserts with ACME Partial Profile | Country of Origin | USA |
Shipping Info
Package Weight
0.001
