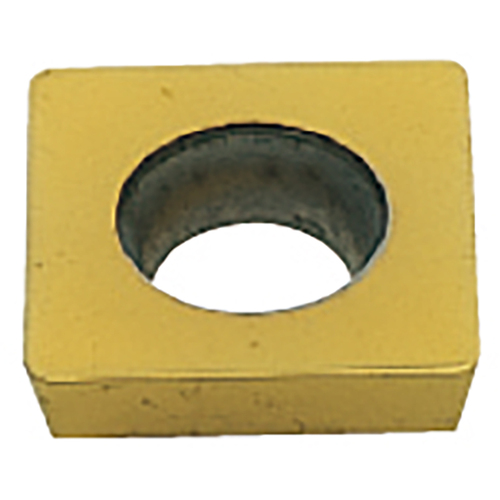

SPMW321 UP20M
Milling Insert; SPMW321 UP20M UP20M × 3.18 mm Thickness ; Carbide
| Applicable Material | | Steel | Stainless Steel | | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.525 mm | Chip Breaker Type | flat_top |
| Insert Thickness (S) | 3.18 mm | Series/List # | UP20M |
| Insert Included Angle (EPSR) | 90 Degrees | Hole Diameter | 4.6 mm |
| Grade | UP20M | Cutting Edge Material | Carbide |
| Shape | Square | Measurement Type | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.200
