SPMW422 NX2525

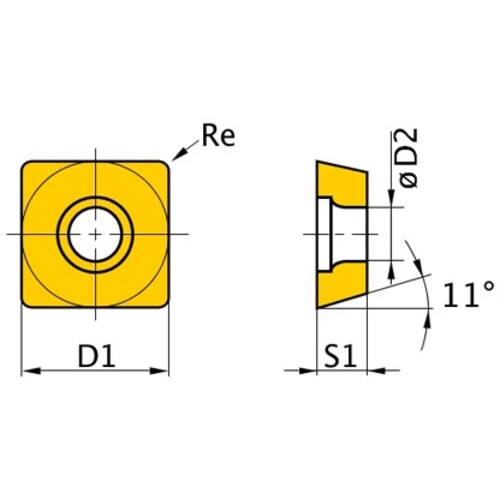

Milling Insert; SPMW422 NX2525 NX2525 × 3.18 mm Thickness ; Cermet
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | flat_top |
| Insert Thickness (S) | 3.18 mm | Series/List # | NX2525 |
| Insert Included Angle (EPSR) | 90 Degrees | Hole Diameter | 5.7 mm |
| Grade | NX2525 | Cutting Edge Material | Cermet |
| Shape | Square | Measurement Type | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.200
