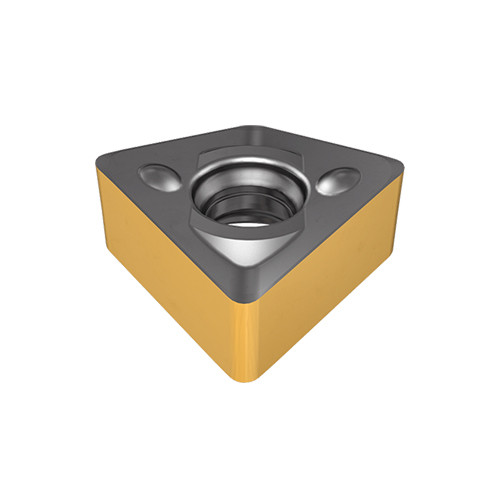

XNMU 090408-PNTN IC5400
Milling Insert; XNMU 090408-PNTN IC5400 IC5400 × 0.234″ Thickness ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Steel | Stainless Steel | | Shape | Round |

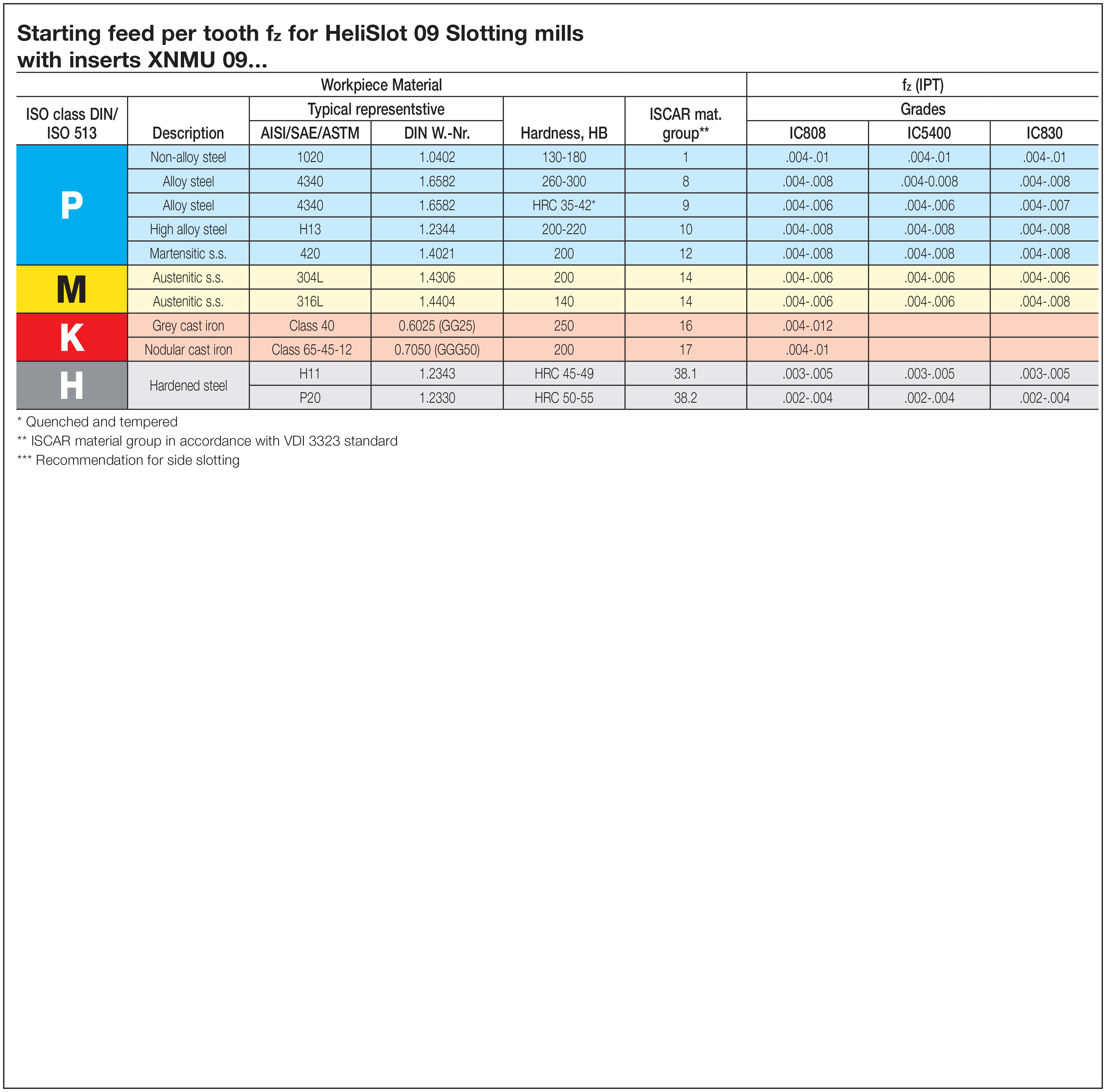

| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

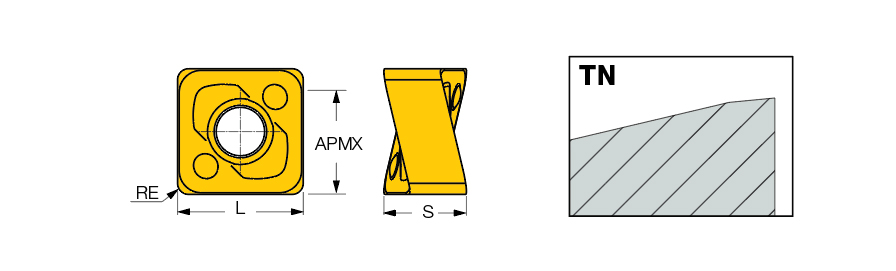

| Insert Length (INSL) | 0.358″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.3228″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Insert Thickness (S) | 0.234″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Effective Length (LE) | 0.295″ |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | IC5400 | Body Material | Carbide |
Product Features
| Family Description | Square inserts with 4 right- and 4 left-hand cutting edges | Country of Origin | Israel |
Shipping Info
Package Weight
0.011
