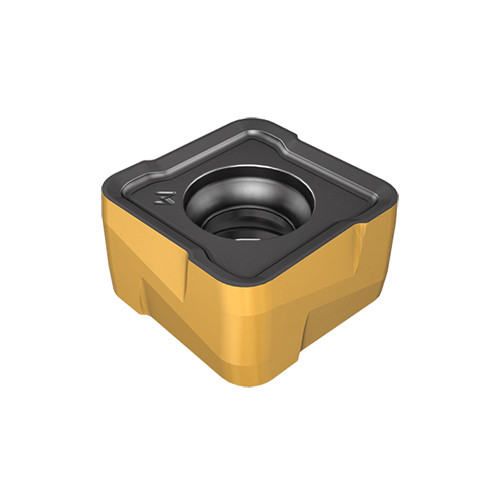

S890 SZMU 080412PNTR IC5100
Milling Insert; 0.205″ Length × 0.157″ Thickness ; IC5100 ; Carbide ; TiCN+Al2O3
| Applicable Material | | Cast Iron | | Coating | TiCN+Al2O3 |
| Application | | Shouldering | Slotting | | Grade | IC5100 |

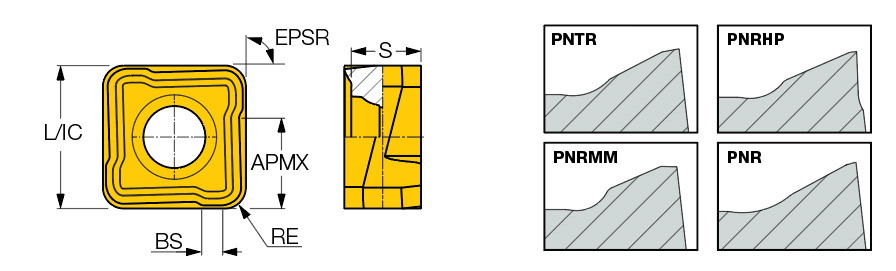

| Cutting Edge Length (L) | 0.205″ | Shape | Round |
| Insert Length (INSL) | 0.205″ | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Corner Radius (RE) | 0.0472″ | Cutting Edge Material | Carbide |

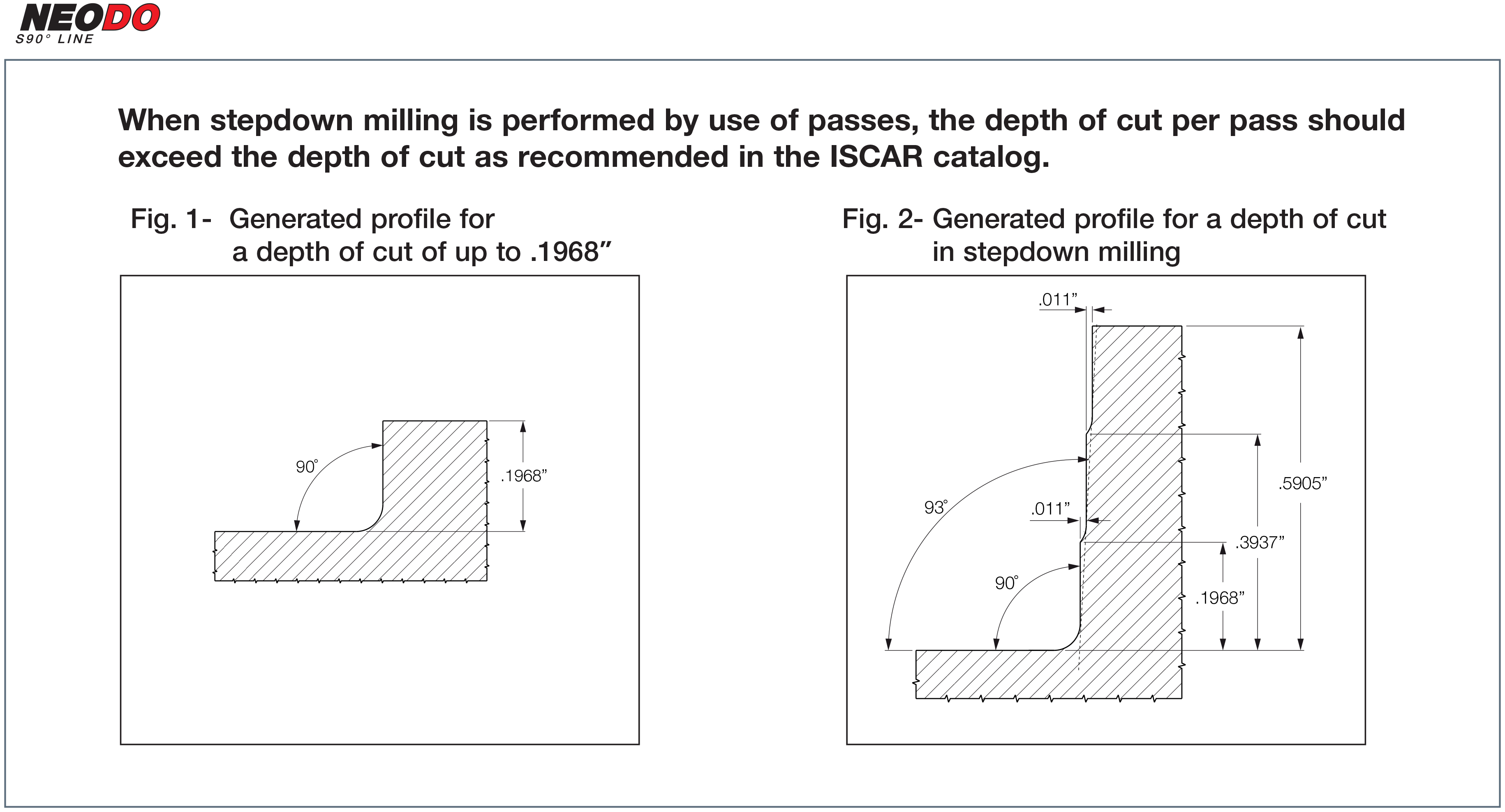

| Depth of Cut Maximum (APMX) | 0.1969″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.323″ | Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Insert Thickness (S) | 0.157″ | Number of Cutting Edges | 8 |
| Wiper Edge Length (BS) | 0.047″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 88.4 Degrees | Body Material | Carbide |
Product Features
| Family Description | Double-sided square inserts with 8 cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.127
