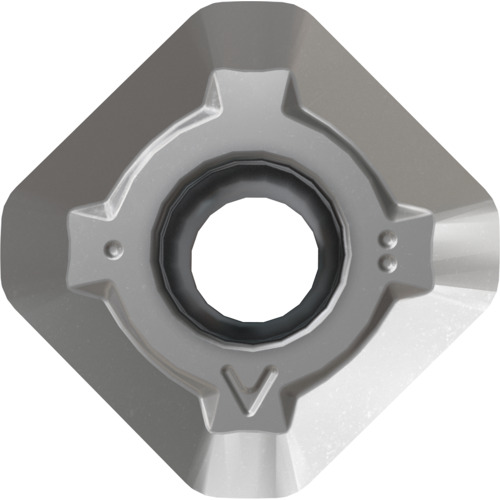

SEGT12T3-AL-YG50/SEGT12T3-AL
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Insert Style | SEGT |
| Corner Radius (RE) | 0.059″ | Clearance Angle Major (AN) | 20 Degrees |
| Depth of Cut Maximum (APMX) | 6″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.528″ | Chip Breaker Type | AL |
| Insert Thickness (S) | 0.157″ | Series/List # | SEGT |
| Wiper Edge Length (BS) | 0.051″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 45 Degrees | Tool Type | Milling Insert |
| Coating | Uncoated | Coating Process | Uncoated |
| Grade | YG50 | Number of Cutting Edges | 4 |
| Shape | Square | Measurement Type | Inch |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.000
Package Width
1.750
Package Height
0.625
Package Weight
0.999
