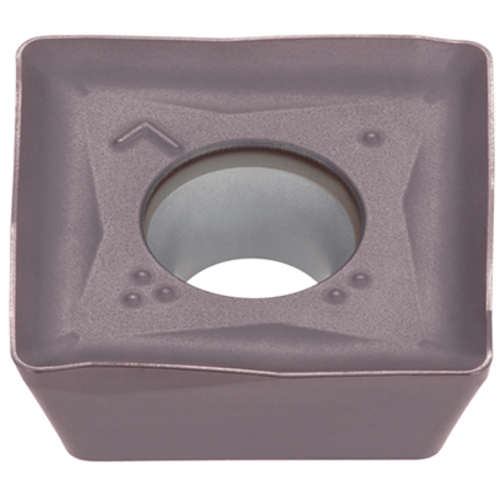

SWMT1304PDER-ML AH130
Milling Insert; SWMT1304PDERML AH130 AH130 × 0.535″ Width × 0.197″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Round |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0071 in/tooth |
| Corner Radius (RE) | 0.0314″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.394″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.535″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 0.535″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.197″ | Cutting Edge Effective Length (LE) | 0.535″ |
| Wiper Edge Length (BS) | 0.055″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH130 |
Product Features
| Family Description | Suitable for machining low rigidity workpieces. | Country of Origin | JAPAN |
Shipping Info
Package Length
3.56000
Package Width
1.40000
Package Height
.24000
Package Weight
0.192
