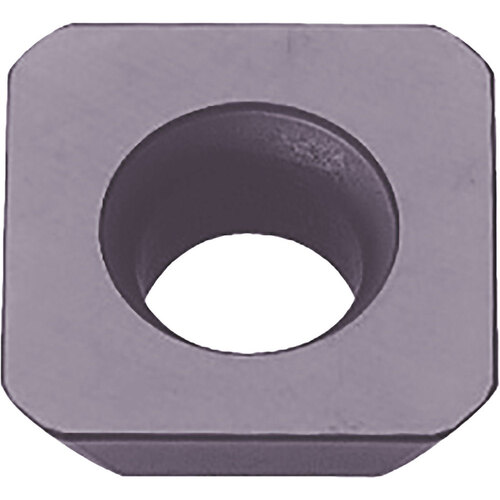

SEKW 43AFTN PR1225 INSERT
Milling Insert; SEKW 43AFTN PR1225 PR1225 × 1/2″ Width × 3/16″ Thickness ; Carbide ; MEGACOAT
| Applicable Material | | Steel | Stainless Steel | | Insert Size | 43 |
| Application | Milling | Clearance Angle Major (AN) | 20 Degrees |
| Insert Width (W1) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | AFTN |
| Insert Thickness (S) | 3/16″ | Hole Diameter | 0.2165″ |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | MEGACOAT | Tool Type | Medium-Roughing |
| Grade | PR1225 | Coating Process | PVD |
| Shape | Square | Number of Cutting Edges | 4 |
| Insert Style | SEKW | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # SEKW43AFTNPR1225 | Country of Origin | Japan |
Shipping Info
Package Weight
.1645
