| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Round |
| Application | | Chamfering & Bottom Deburring | Countersinking | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |

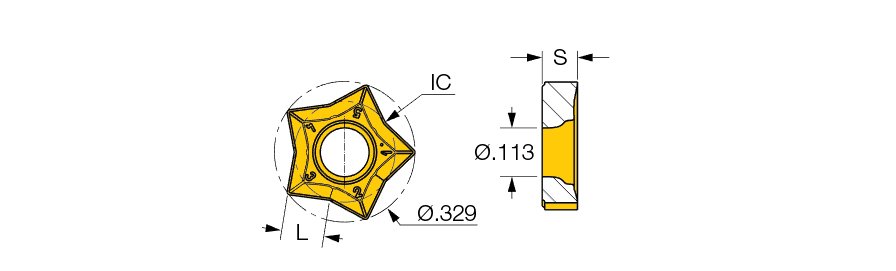

| Cutting Edge Length (L) | 0.091″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.091″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0079″ | Minimum Feed per Tooth (fz(min)) | 0.0027 ″/tooth |
| Inscribed Circle Diameter (IC) | 0.236″ | Number of Cutting Edges | 10 |
| Insert Thickness (S) | 0.083″ | Cutting Edge Effective Length (LE) | 0.059″ |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Product Features

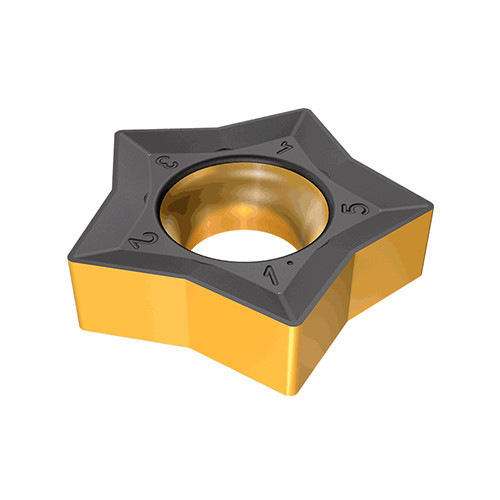

| Family Description | Pentagonal inserts with 5 front and 5 back cutting edges for upper and bottom chamfering. | Country of Origin | Israel |
Shipping Info
Package Length
3.87500
Package Width
1.62500
Package Height
.43750
Package Weight
0.004
