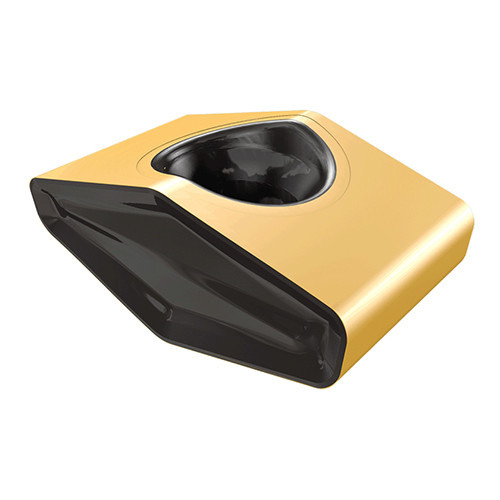

FF VNMT 0706ZN-ETR IC830
Milling Insert; FF VNMT 0706ZN-ETR IC830 IC830 × 0.252″ Width × 0.356″ Thickness ; Carbide ; TiAlN+TiN

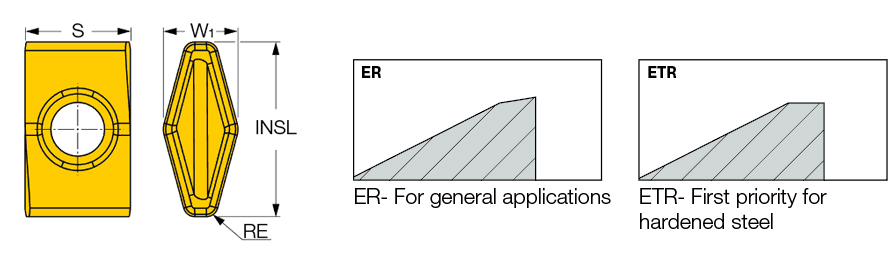

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0709 ″/tooth |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Direction (HAND) | Neutral |
| Insert Length (INSL) | 0.591″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0394″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.252″ | Minimum Feed per Tooth (fz(min)) | 0.0157 ″/tooth |
| Insert Thickness (S) | 0.356″ | Number of Cutting Edges | 4 |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | Tangentially clamped inserts with 4 cutting edges for fast feed milling. | Country of Origin | Israel |
| Remarks | For side plunging, the initial cutting feed is .004 inch/t |
Shipping Info
Package Weight
0.016
