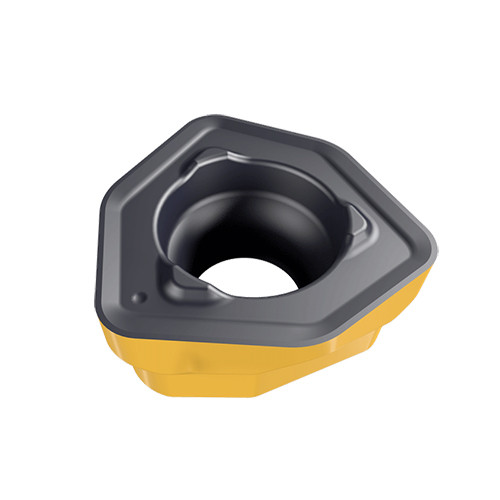

FFT3 WXMT 030206T IC808
Milling Insert; FFT3 WXMT 030206T IC808 IC808 × 0.087″ Thickness ; Carbide ; TiAlN+AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Round |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Maximum Feed per Tooth (fz(max)) | 0.0315 ″/tooth |

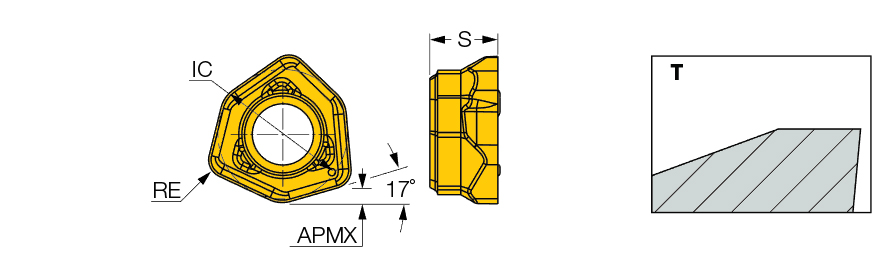

| Insert Length (INSL) | 0.177″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0236″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.0236″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Inscribed Circle Diameter (IC) | 0.165″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.087″ | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 |
Product Features
| Family Description | Single-sided small trigon inserts for Fast Feed milling. | Country of Origin | Israel |
| Remarks | For side plunging, the initial cutting feed is .003 inch/t |
Shipping Info
Package Weight
0.003
