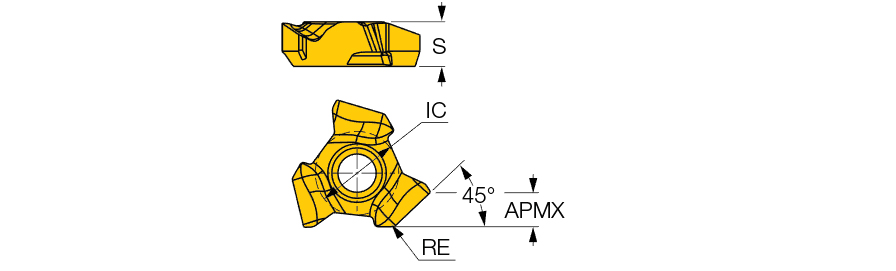

TR45 TXMT 1004 IC830
Milling Insert; TR45 TXMT 1004 IC830 INS IC830 × 0.154″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Round |
| Application | | Facing | Rampdown | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0157 ″/tooth |
| Corner Radius (RE) | 0.0157″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.1181″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.287″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Insert Thickness (S) | 0.154″ | Number of Cutting Edges | 3 |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
Product Features
| Family Description | Single-sided inserts with three cutting edges for 45° chamfering and face milling. | Country of Origin | Israel |
Shipping Info
Package Weight
0.009
