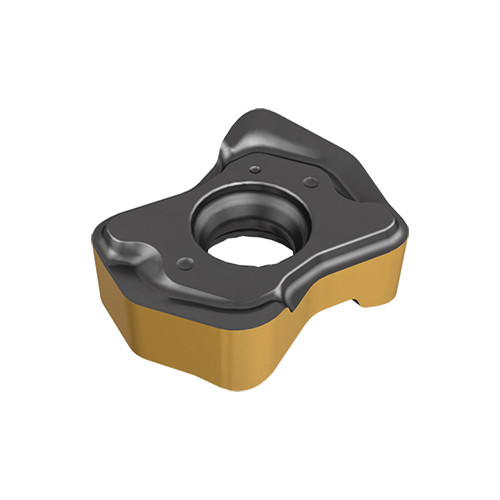

FFX4 XNMU 040310HP IC830
Milling Insert; FFX4 XNMU 040310HP IC830 IC830 × 0.282″ Width ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Round |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Maximum Feed per Tooth (fz(max)) | 0.0315 ″/tooth |

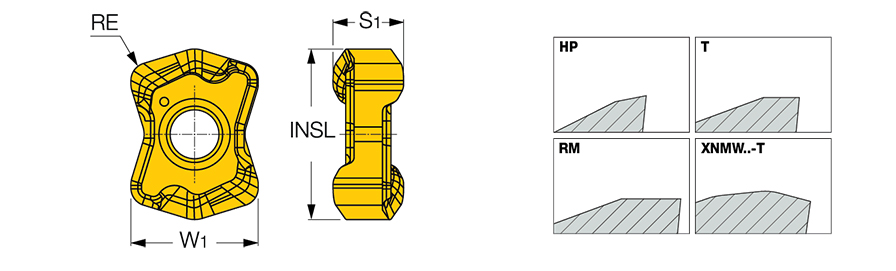

| Insert Length (INSL) | 0.377″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0394″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.0315″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Insert Width (W1) | 0.282″ | Number of Cutting Edges | 4 |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
Product Features
| Family Description | Double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets, profiling and face milling. | Country of Origin | Israel |
| Remarks | For side plunging, the initial cutting feed is .004 inch/t HP- for austenitic stainless steel, titanium and high temperature alloys RM-reinforced type insert T- for steel, ferritic and martensitic stainless steel and cast iron XNMW-T- for hard material (up to 49 HRC) and uneven surfaces |
Shipping Info
Package Weight
0.04
