| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC808 |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Shape | Round |

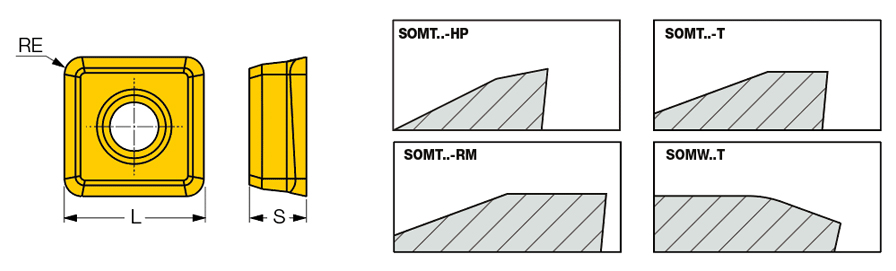

| Cutting Edge Length (L) | 0.339″ | Maximum Feed per Tooth (fz(max)) | 0.059 ″/tooth |
| Insert Length (INSL) | 0.335″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0472″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.335″ | Minimum Feed per Tooth (fz(min)) | 0.0157 ″/tooth |
| Insert Thickness (S) | 0.154″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
Product Features

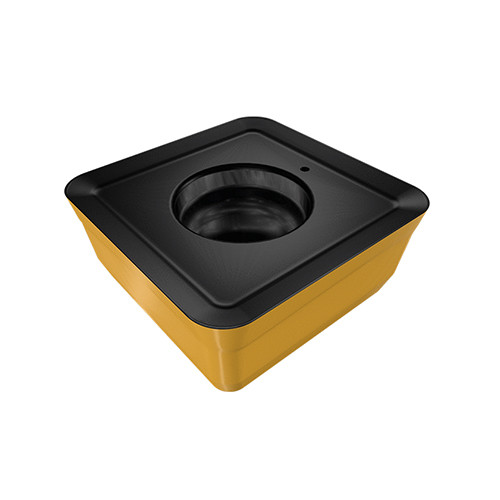

| Family Description | Single-sided square inserts with 4 cutting edges for fast feed milling. | Country of Origin | Israel |
| Remarks | For side plunging, the initial cutting feed is .004 inch/t T type for steel, ferritic and martensitic stainless steel and cast iron RM-.. reinforced radius type for machining near straight shoulder walls HP type for austenitic stainless steel and high temperature alloys SOMW- flat insert for hard material (up to 60 HRC) and uneven surface For cutting conditions click on More info |
Shipping Info
Package Length
4.00000
Package Width
1.50000
Package Height
.50000
Package Weight
0.008
