BOMT130404R-DT2 IN90D

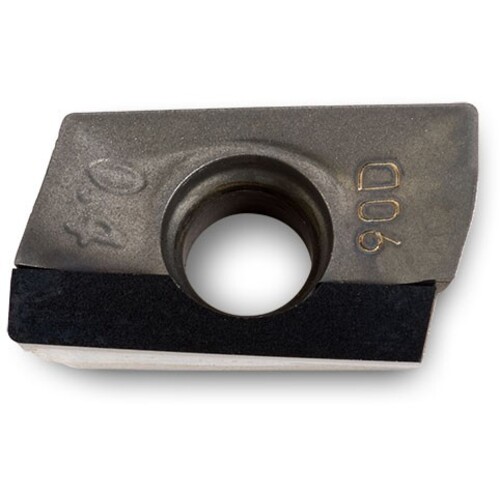

Milling Insert; BOMT130404R-DT2 IN90D INS IN90D 0.49″ Length × 0.32″ Width × 0.19″ Thickness
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Insert Style | BOMT130404R-DT2 |
| Cutting Edge Length (L) | 0.49″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Insert Length (INSL) | 0.557″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.015″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.32″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.19″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Wiper Edge Length (BS) | 0.055″ | Number of Cutting Edges | 1 |
| Grade | IN90D | Measurement Type | Inch |
| Shape | Round | Body Material | Steel |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.011
