T890 LNAT 1306PN-W IC810
Milling Insert; T890 LNAT 1306PN-W IC810 IC810 × 0.232″ Width ; Carbide ; AlTiCrN+TiN
| Applicable Material | | Steel | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Application | | Facing | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.548″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0236″ | Tool Type | Mill Tangential Inserts |

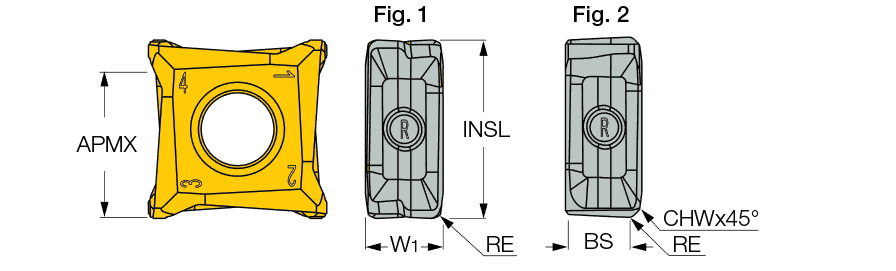

| Depth of Cut Maximum (APMX) | 0.374″ | Figure | 2 |
| Insert Width (W1) | 0.232″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Wiper Edge Length (BS) | 0.169″ | Number of Cutting Edges | 4 |
| Coating | AlTiCrN+TiN | Measurement Type | Inch |
| Grade | IC810 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | Tangentially clamped inserts with 4 or 8 cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.024
