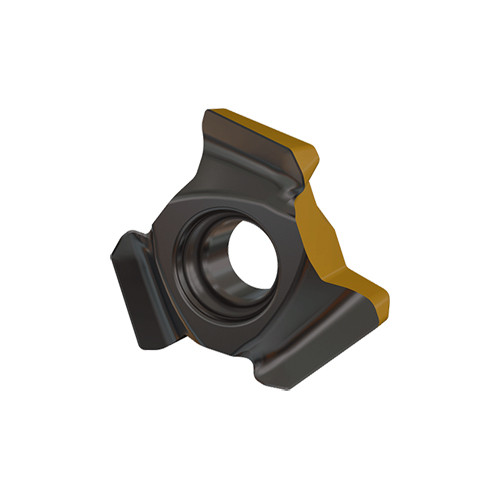

TR45 TXMT 1004 IC808
Milling Insert; TR45 TXMT 1004 IC808 INS IC808 × 0.154″ Thickness ; Carbide ; TiAlN+AlTiN+TiN

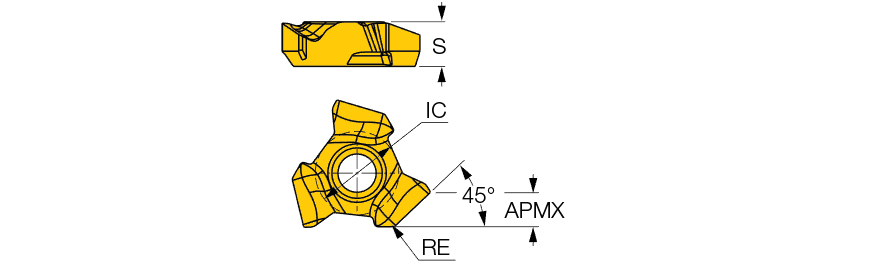

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Round |
| Application | | Facing | Rampdown | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.4 mm/tooth |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 3 mm | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 7.3 mm | Minimum Feed per Tooth (fz(min)) | 0.2 mm/tooth |
| Insert Thickness (S) | 3.9 mm | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 |
Product Features
| Family Description | Single-sided inserts with three cutting edges for 45° chamfering and face milling. | Country of Origin | Israel |
Shipping Info
Package Weight
0.009
