HM390 TPKR 100308PDRHM830
Milling Insert; HM390 TPKT 1003PDR-MP 830 IC830 × 0.161″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Edge Material | Carbide |

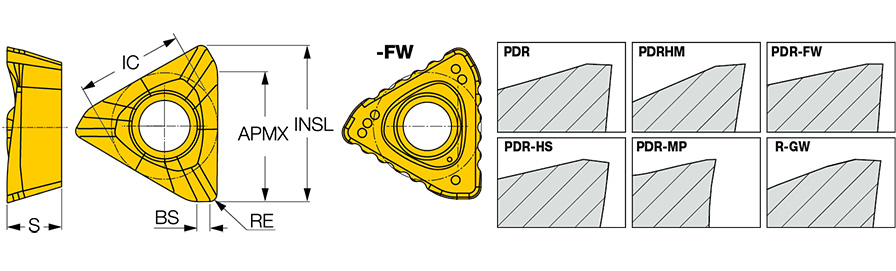

| Insert Length (INSL) | 10.9 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.8 mm | Figure | 4 |
| Depth of Cut Maximum (APMX) | 8 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 4.1 mm | Number of Cutting Edges | 3 |
| Insert Included Angle (EPSR) | 60 Degrees | Cutting Edge Effective Length (LE) | 8 mm |
| Coating | AlTiN+TiN | Measurement Type | Metric |
| Grade | IC830 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.007
