QDMT 1205PDN-RM IC810
Milling Insert; QDMT 1205PDN-RM IC810 IC810 × 0.197″ Thickness ; Carbide
| Applicable Material | | Steel | Cast Iron | | Grade | IC810 |
| Application | | Bottom Shouldering | Milling Inserts | Shouldering | Side Slotting | Slotting | T Slotting | | Shape | Square |

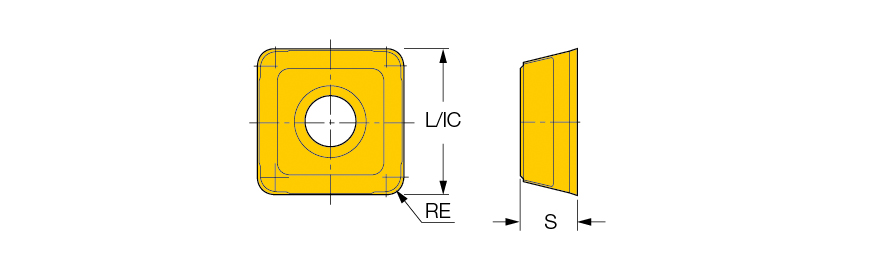

| Insert Length (INSL) | 1/2″ | Maximum Feed per Tooth (fz(max)) | 0.0071 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.197″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiCrN+TiN | Body Material | Carbide |
Product Features
| Family Description | General use insert with 4 right- or left-hand cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.018
