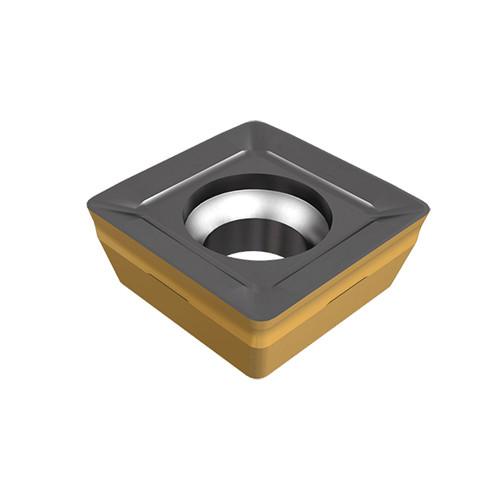

QPMT 100408PDTN-M IC810
Milling Insert; QPMT 100408PDTN-M IC810 IC810 × 0.162″ Thickness ; Carbide ; AlTiCrN+TiN
| Applicable Material | | Steel | Cast Iron | | Shape | Square |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |

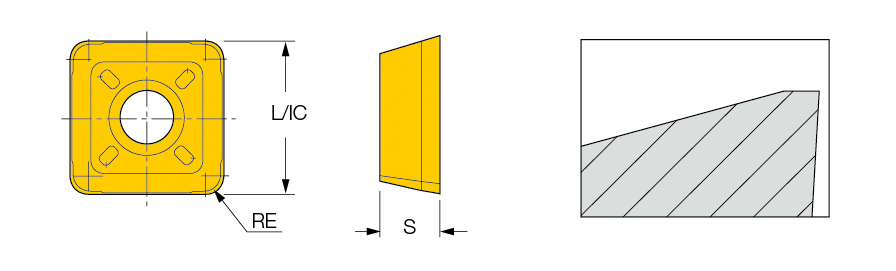

| Insert Length (INSL) | 10.35 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.7 mm | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 4.12 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | AlTiCrN+TiN | Measurement Type | Metric |
| Grade | IC810 | Body Material | Carbide |
Product Features
| Family Description | Neutral insert with reinforced land for slotting | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.004
