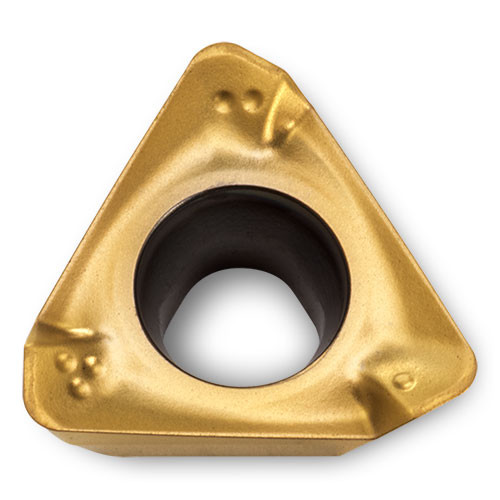

THES060404R IN2505
Milling Insert; 0.27″ Length × 0.157″ Thickness ; IN2505 ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Shape | Round |
| Cutting Edge Length (L) | 0.27″ | Insert Style | THES060404R |
| Corner Radius (RE) | 0.015″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.272″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.157″ | Number of Cutting Edges | 3 |
| Wiper Edge Length (BS) | 0.051″ | Measurement Type | Inch |
| Coating | TiAlN+TiN | Body Material | Steel |
| Grade | IN2505 |
Product Features
| Family Description | Ground periphery for tighter diameter & height tolerance control Designed for multiple materials and applications 3 Indexes | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.006
