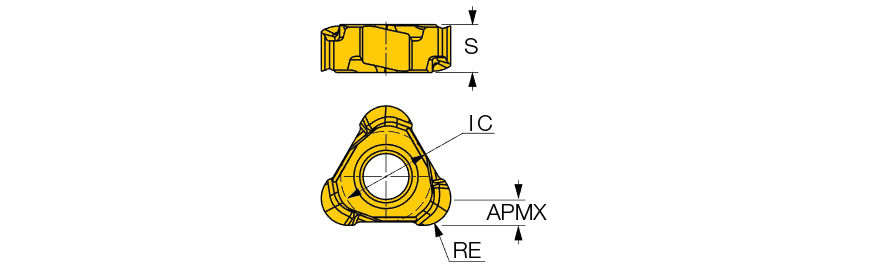

TR6 TNCU 100425 IC830
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Round |
| Application | | Facing | Profiling | Undercutting | | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Corner Radius (RE) | 0.0984″ | Cutting Direction (HAND) | Neutral |
| Depth of Cut Maximum (APMX) | 0.0984″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.287″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.165″ | Number of Cutting Edges | 6 |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
Product Features
| Family Description | Double-sided inserts with six round cutting edges, available in .0197 up to .1181″ corner radii. | Country of Origin | Israel |
Shipping Info
Package Weight
0.009
