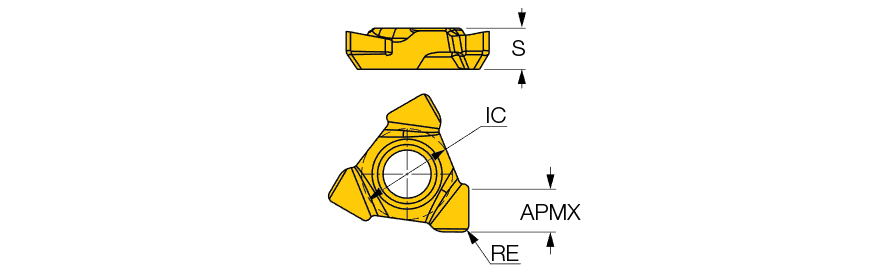

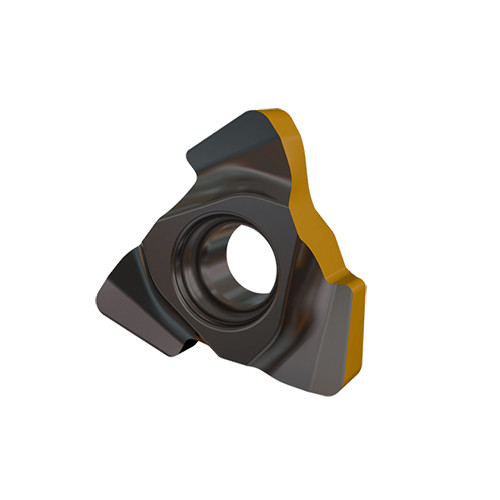

TR90 TXMT 070204 IC830
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Round |
| Application | | Facing | Rampdown | Shouldering | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.0157″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.0984″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.209″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.094″ | Number of Cutting Edges | 3 |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
Product Features
| Family Description | Single-sided insert with three cutting edges for 90° shoulder and face milling. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
