T490 LNHT 1306PNTL IC808
Milling Insert; T490 LNHT 1306PNTL IC808 IC808 × 0.262″ Width × 0.514″ Thickness ; Carbide ; TiAlN+AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Round |
| Application | | Bottom Shouldering | Facing | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Insert Length (INSL) | 13.81 mm | Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.85 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 12.5 mm | Tool Type | Mill Tangential Inserts |

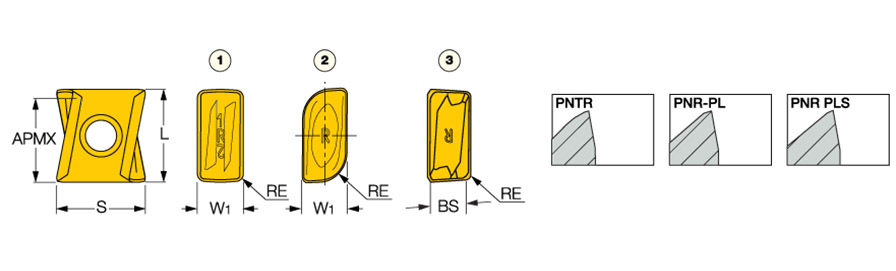

| Insert Width (W1) | 6.65 mm | Figure | 1. |
| Insert Thickness (S) | 13.05 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Metric |
| Grade | IC808 | Body Material | Carbide |
Product Features
| Family Description | HELITANG - Tangentially clamped inserts with 4 helical cutting edges. The unique pocket design prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts. | Country of Origin | Israel |
| Remarks | LNMT-utility inserts, LNHT-precision inserts. |
Shipping Info
Package Weight
0.022
