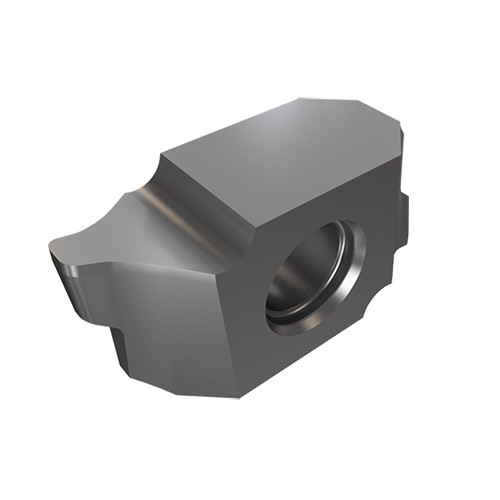

LNET 18-M1.50-NO3-C-CL10 IC908
Milling Insert; LNET 18-M1.50-NO3-C-CL10 IC908 × 8.5 mm Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Round |
| Application | | Gear tooth profile | | Cutting Direction (HAND) | Neutral |

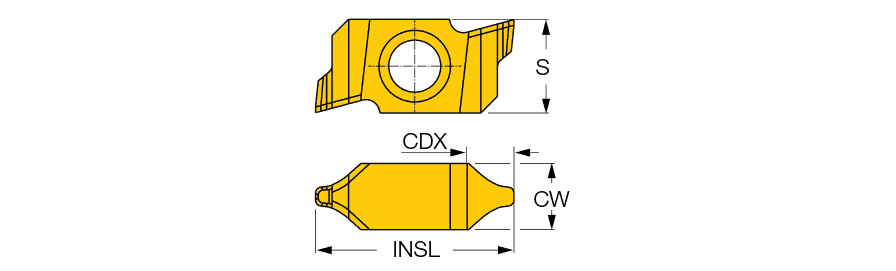

| Insert Length (INSL) | 18 mm | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 8.5 mm | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 4 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | Indexable inserts for involute gear profile milling according to DIN 3972 basic profile ||, with module range 1-1.75 mm. Tolerances according to DIN 3962 class-10. Pressure angle 20° | Country of Origin | Israel |
| Remarks | Other gear profiles within module 1.0-1.75 mm range can be provided on request |
Shipping Info
Package Weight
0.019
