FF VNMT 0706ZN-ER IC840

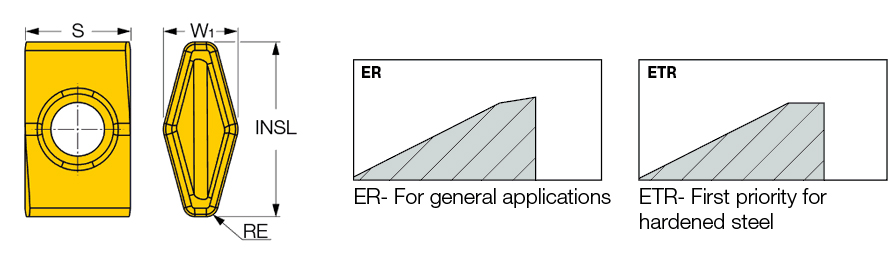

Milling Insert; FF VNMT 0706ZN-ER IC840 IC840 × 0.252″ Width × 0.356″ Thickness ; Carbide ; AlTiN+TiAlSiN+TiSiN
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 1.8 mm/tooth |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Direction (HAND) | Neutral |
| Insert Length (INSL) | 15 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1 mm | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 6.4 mm | Minimum Feed per Tooth (fz(min)) | 0.4 mm/tooth |
| Insert Thickness (S) | 9.05 mm | Number of Cutting Edges | 4 |
| Coating | AlTiN+TiAlSiN+TiSiN | Measurement Type | Metric |
| Grade | IC840 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | Tangentially clamped inserts with 4 cutting edges for fast feed milling. | Country of Origin | Israel |
| Remarks | For side plunging, the initial cutting feed is 0.1 mm/t |
Shipping Info
Package Weight
0.016
