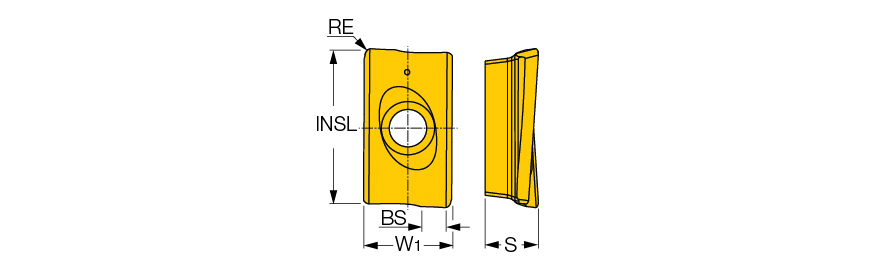

P290 ACKT 1806PDR-HL 830
Milling Insert; 19.4 mm Length × 10.75 mm Width × 6.5 mm Thickness ; IC830 ; Carbide ; AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Round |
| Application | | Facing | Profiling | Rampdown | Shouldering | | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Cutting Edge Length (L) | 19.4 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 19.4 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 18 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Width (W1) | 10.75 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 6.5 mm | Cutting Edge Effective Length (LE) | 18 mm |
| Coating | AlTiN+TiN | Measurement Type | Metric |
| Grade | IC830 | Body Material | Carbide |
Product Features
| Family Description | Single-sided rectangular inserts with two 12 and 18 mm straight cutting edges. | Country of Origin | Israel |

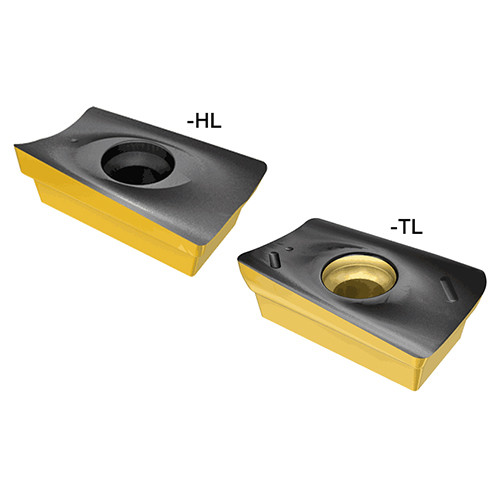

| Remarks | HL - For finishing applications (ae max=1 mm) HL-P - Polished rake, used for aluminum TL- Reinforced straight cutting edges, designed for rough and semi-finishmilling |
Shipping Info
Package Weight
0.03
