FFQ4 SOMT 090412T IC808
Milling Insert; 8.6 mm Length × 3.9 mm Thickness ; IC808 ; Carbide ; TiAlN+AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC808 |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Shape | Round |

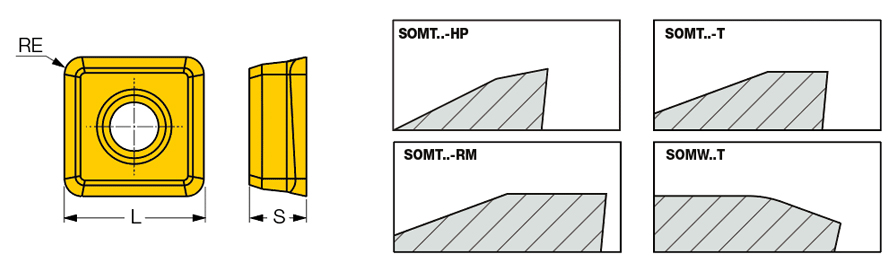

| Cutting Edge Length (L) | 8.6 mm | Maximum Feed per Tooth (fz(max)) | 1.5 mm/tooth |
| Insert Length (INSL) | 8.5 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 1.2 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 1 mm | Minimum Feed per Tooth (fz(min)) | 0.4 mm/tooth |
| Insert Thickness (S) | 3.9 mm | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
Product Features
| Family Description | Single-sided square inserts with 4 cutting edges for fast feed milling. | Country of Origin | Israel |
| Remarks | For side plunging, the initial cutting feed is 0.1 mm/t T type for steel, ferritic and martensitic stainless steel and cast iron RM-.. reinforced radius type for machining near straight shoulder walls HP type for austenitic stainless steel and high temperature alloys SOMW- flat insert for hard material (up to 60 HRC) and uneven surface For cutting conditions click on "More info" |
Shipping Info
Package Length
4.00000
Package Width
1.50000
Package Height
.50000
Package Weight
0.08
