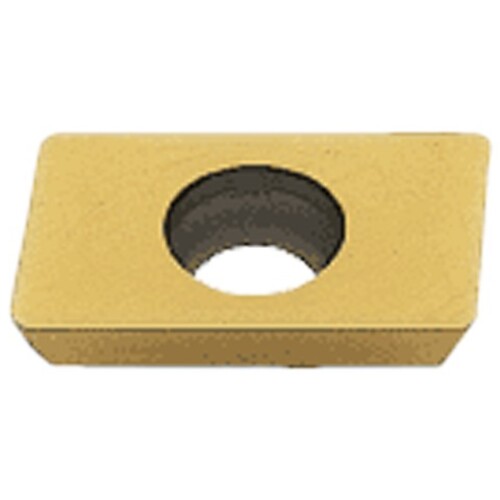

AEMW19T304ER UTI20T INSERT
Milling Insert; 20.161 mm Length × 12.7 mm Width × 3.97 mm Thickness ; UTi20T ; Carbide
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Clearance Angle Major (AN) | 20 Degrees |
| Cutting Edge Length (L) | 20.161 mm | Series/List # | UTi20T |
| Corner Radius (RE) | 0.4 mm | Hole Diameter | 5.5 mm |
| Insert Width (W1) | 12.7 mm | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 3.97 mm | Tool Type | rotating_inserts |
| Grade | UTi20T | Cutting Edge Effective Length (LE) | 18.4 mm |
| Insert Style | AEMW | Measurement Type | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
