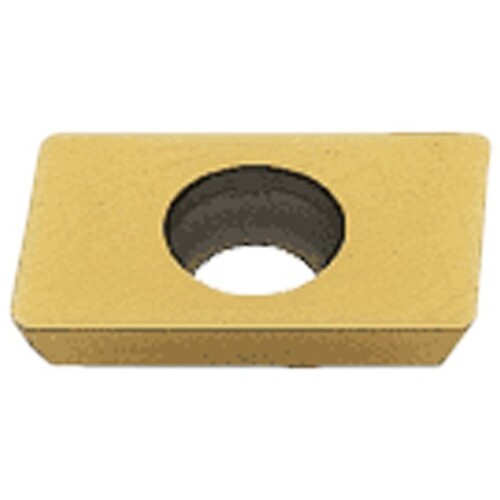

AEMW1503125ER UTI20T INSERT
Milling Insert; 16.189 mm Length × 9.525 mm Width × 3.175 mm Thickness ; UTi20T ; Carbide
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Clearance Angle Major (AN) | 20 Degrees |
| Cutting Edge Length (L) | 16.189 mm | Series/List # | UTi20T |
| Corner Radius (RE) | 3.175 mm | Hole Diameter | 4.394 mm |
| Insert Width (W1) | 9.525 mm | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 3.175 mm | Tool Type | rotating_inserts |
| Insert Included Angle (EPSR) | 85 Degrees | Cutting Edge Effective Length (LE) | 12.436 mm |
| Grade | UTi20T | Measurement Type | Metric |
| Insert Style | AEMW |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.4
