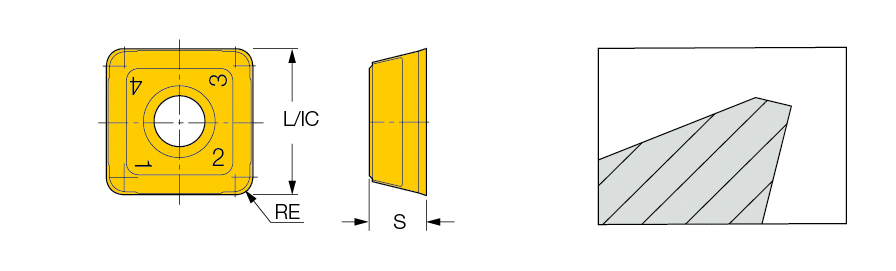

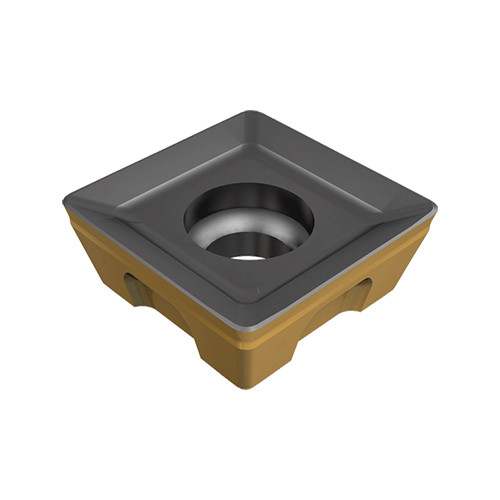

QDMT 120516PDTN-M IC810
Milling Insert; QDMT 120516PDTN-M IC810
| Applicable Material | | Steel | Cast Iron | | Shape | Round |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Insert Length (INSL) | 1/2″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.063″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 1/2″ | Minimum Feed per Tooth (fz(min)) | 0.0027 ″/tooth |
| Insert Thickness (S) | 0.197″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiCrN+TiN | Body Material | Carbide |
| Grade | IC810 |
Product Features
| Family Description | Neutral inserts for slotting | Country of Origin | Israel |
| Remarks | Inserts with corner radii larger than .0315 should be used only on the face of the SDK cutter. |
Shipping Info
Package Weight
0.018
