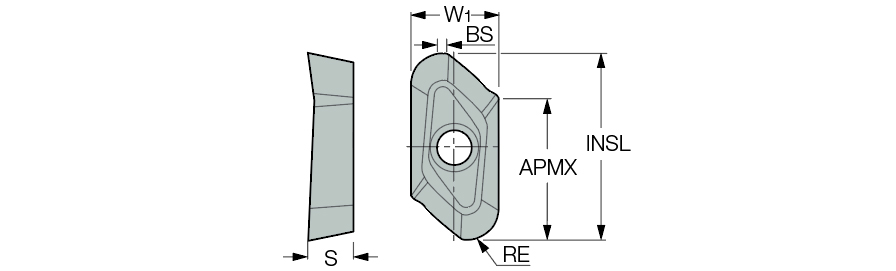

HM90 APCR 220650R-P IC08
| Applicable Material | | Non Ferrous Metals | | Grade | IC08 |
| Application | | Facing | Helical Interpolation | Milling Inserts | Profiling | Rampdown | Shouldering | Slotting | | Shape | Round |
| Cutting Edge Length (L) | 1.11″ | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Insert Length (INSL) | 1.11″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.1969″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.866″ | Minimum Feed per Tooth (fz(min)) | 0.0027 ″/tooth |
| Insert Width (W1) | 0.54″ | Cutting Edge Effective Length (LE) | 0.839″ |
| Insert Thickness (S) | 0.24″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | Super positive and polished .866″ inserts with various corner radii used for machining aluminum. | Country of Origin | Israel |
Shipping Info
Package Weight
0.042
