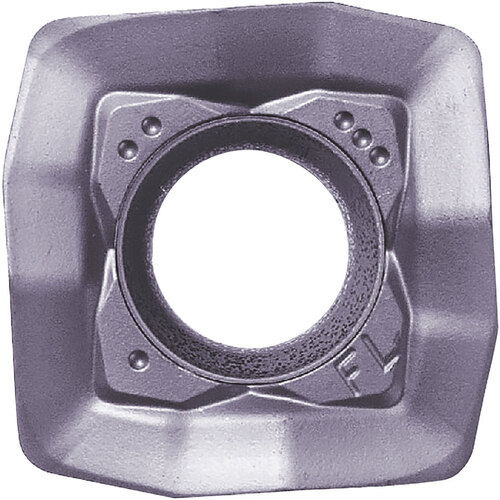

SOMT 140514ERFL PR1525

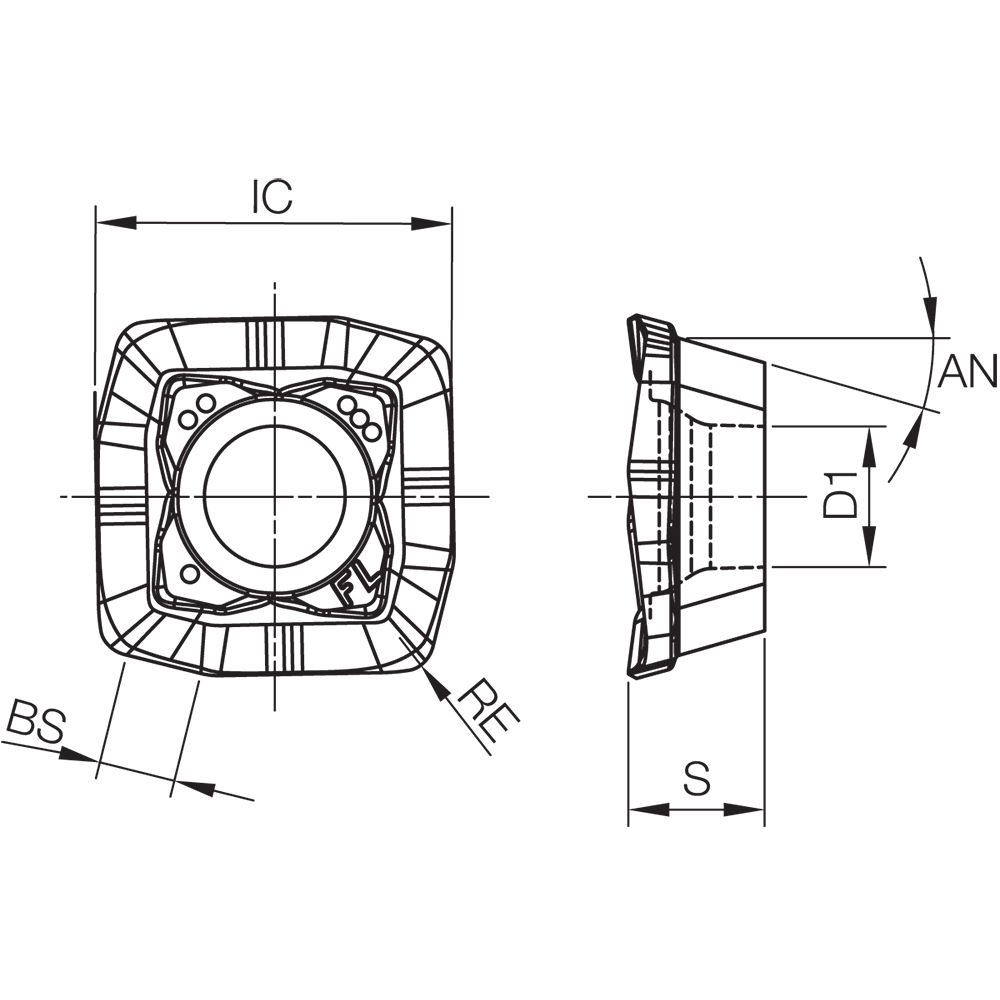

| Applicable Material | | Steel | Hard Materials | | Insert Size | 140514 |
| Application | High Feed | Facing | Shouldering | Slotting | Pocketing | Ramping | Helical Milling | Plunging | Clearance Angle Major (AN) | 16 Degrees |
| Corner Radius (RE) | 0.0551″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.5736″ | Chip Breaker Type | ER-FL |
| Inscribed Circle Diameter (IC) | 0.5736″ | Series/List # | MFH-Raptor |
| Insert Thickness (S) | 7/32″ | Hole Diameter | 0.2283″ |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | MEGACOAT NANO | Tool Type | Finishing-Roughing |
| Grade | PR1525 | Coating Process | PVD |
| Shape | Square | Number of Cutting Edges | 4 |
| Insert Style | SOMT | Measurement Type | Inch |
Product Features
| Family Description | Alternate Manufacture # SOMT140514ERFLPR1525 | Country of Origin | Japan |
Shipping Info
Package Weight
.1843
