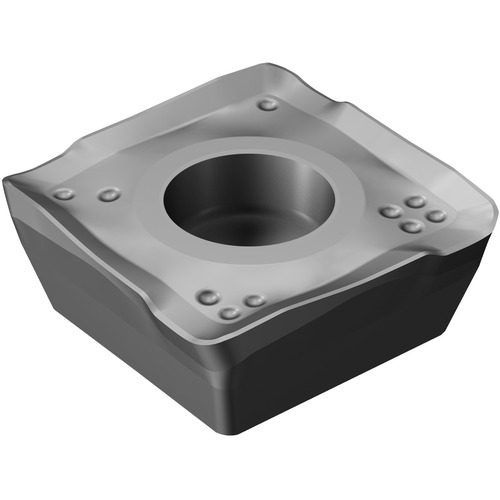

490R140408MPL 1130 Insert
Milling Insert; 10.3 mm Length × 3.9 mm Thickness ; 1130 ; Carbide ; AlTiCrN
| Applicable Material | | Steel | | Grade | 1130 |
| Cutting Edge Length (L) | 10.3 mm | Shape | Square |
| Corner Radius (RE) | 0.8 mm | Insert Style | 490R-140408M-PL |
| Inscribed Circle Diameter (IC) | 13.8 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.9 mm | Chip Breaker Type | PL |
| Insert Included Angle (EPSR) | 16 Degrees | Hole Diameter | 4.1 mm |
| Coating | AlTiCrN | Cutting Edge Material | Carbide |
Product Features
| Remarks | •Versatile shoulder milling tools that cut the cost of face and shoulder milling•Offers milling customers lower tool costs and inventories, greater flexibility, higher precision and tighter tolerances•CoroMill 490 uses four-edge inserts with outstanding insert geometry and new grades, giving sharper edge lines, which reduce cutting force-the result is a smoother profile, requiring less finishing than before | Country of Origin | Sweden |
Shipping Info
Package Length
1.00000
Package Width
1.00000
Package Height
1.00000
Package Weight
0.192
