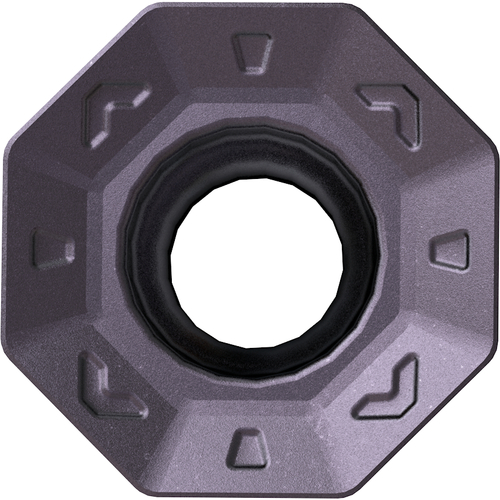

OFMT05T308-YG602/OFMT05T308
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Style | OFMT |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 25 Degrees |
| Depth of Cut Maximum (APMX) | 3-1/2″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Series/List # | OFMT |
| Insert Thickness (S) | 0.16″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 45 Degrees | Tool Type | Milling Insert |
| Coating | TiAlN | Coating Process | PVD |
| Grade | YG602 | Number of Cutting Edges | 8 |
| Shape | Octogonal | Measurement Type | Inch |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.000
Package Width
1.750
Package Height
0.625
Package Weight
0.112
